What Is A Hoffmann Key?
What Is A Hoffmann Key?
A Hoffmann Key is a precision-made dovetail-shaped joining element used to create strong, accurate and durable joints in timber and other suitable materials.
The Hoffmann Key is inserted into a specially machined dovetail-shaped slot using a Hoffmann routing machine. As the key is driven into the slot, its opposing dovetail profiles pull the two components together to create a precise mechanical joint.
Hoffmann Keys are widely used for joining mitred components in applications including windows, doors, furniture, picture frames, mouldings, glazing bars and many other timber products.
The system provides manufacturers with a fast, repeatable alternative to traditional joining methods, particularly where accurate and efficient production is important.
How does a Hoffmann Key work?
The Hoffmann Key joint is based on a simple but highly effective dovetail principle.

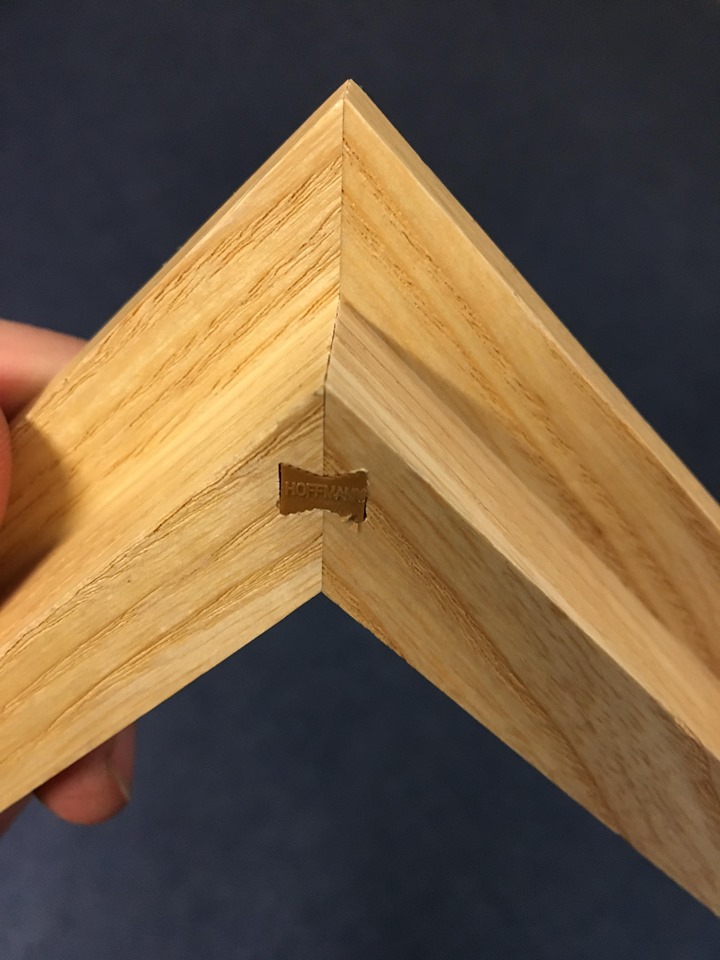

Two adjoining components are positioned together and a continuous dovetail-shaped slot is machined across the joint. A Hoffmann Key is then inserted into the slot.
The geometry of the key and slot creates a mechanical connection between the two components. As the key is inserted, the dovetail profile engages with the material on either side of the joint, helping to pull and hold the components together.
Depending on the application, adhesive can also be used as part of the jointing process.
The result is a clean, accurately positioned joint without the need for complicated clamps, screws or other visible mechanical fixings.
What Is A Hoffmann Key Used For?
Hoffmann Keys are particularly useful for joining mitred or angled components where accurate alignment and a strong mechanical connection are required.
Typical applications include:
- Wooden window frames
- Door components
- Picture and photo frames
- Furniture
- Glazing bars
- Cornices and mouldings
- Architraves and skirting
- Handrails and stair components
- Fire door components
- Post and beam construction
- Other specialist joinery applications
The system can be used for both individual components and higher-volume production, depending on the Hoffmann machine selected.
Why Use A Hoffmann Key?
For manufacturers, one of the main advantages of the Hoffmann system is the combination of accuracy, speed and repeatability.
Fast joint preparation
The joint can be machined and assembled quickly, making the system suitable for both one-off work and production environments.
Accurate positioning
The Hoffmann Key helps maintain accurate alignment between the components being joined.
Strong mechanical connection
The dovetail geometry creates a mechanical connection within the material, helping to hold the joint securely.
Clean appearance
The Hoffmann Key is inserted into a machined slot, leaving no screws or other conventional mechanical fixings visible on the finished component.
Repeatable production
Using a dedicated Hoffmann machine allows the position and depth of the joint to be controlled consistently from one component to the next.
Reduced assembly complexity
The Hoffmann system can simplify the assembly of mitred components and reduce the reliance on conventional clamping and fixing methods.
